Arc Fault Kiosk

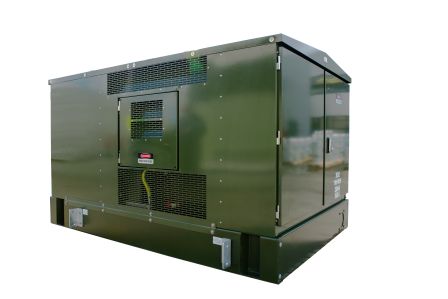

ETEL'S ARC FAULT KIOSK HAS BEEN DESIGNED TO BE INTRINSICALLY SAFE FOR OPERATORS AND THE PUBLIC IN THE EVENT OF AN INTERNAL ARC FAULT IN THE HV SWITCHGEAR COMPARTMENT.

KEY FEATURES

  • Fully type tested to IEC62271-202:2014-03, with a rating of IAC-AB 20kA/1s.
  • Safe for installation in high-risk areas, workplaces and public spaces without any need for additional fencing or protection.
  • Fully integrated substation capable of housing a number of transformer sizes.
  • LV cubicle for installation of LV switchgear and protection.
  • Removable enclosure to enable future modifications.
  • Powder coated enclosure, galvanised base.

OPTIONAL FEATURES

  • Winding temperature indication
  • Fused protection
  • Surge arrestors
  • Fault passage indicators
  • Voltage indication
  • Circuit breakers
  • Current monitoring
  • Remote indication can be added for all protection devices
  • Oil bunding rated to 110% oil volume

TECHNICAL SPECIFICATIONS

  • Designed and manufactured to AS60076.1
  • Type tested to IEC62271-202:2014-03
  • Kiosk arc fault rating IAC-AB 20kA/1s
  • IP Rating – Kiosk enclosure – IP23D, HV & LV compartment – IP54
  • Kiosk short circuit rating 20kA/1s
  • Oil Filled to IEC60076
  • KVA sizes – 100kVA up to 500kVA
  • HV Volts – 6600, 11000, 22000
  • LV Volts – 415-240 (as standard)
  • HV tappings  +5% to -7.5% up to 300kVA, +2.5% to -10% 500kVA and above.
  • BIL/Power Frequency Levels 95kVpeak / 28kVrms, 150kVpeak / 50kVrms, 200kVpeak / 70kVrms
